hi, need help in how to make interpolation formula based on 2 variable?

AJIESPEDAS · 2024-05-26T22:20:14-0400

hi experts!

i come to a problem again with excel and in need of your expertise to solve my problem.
in given 2 variable for example

12750 lbs with a temperature 31
i need a interpolation that can derive an answer based on image that i give?
is it possible? i have done a single simple interpolation and thats bout it, but this new thing i think it can be done?not so sure..

regards,

ajiespedas

StephenCrump · 2024-05-27T02:02:00-0400

You can do a 2-way linear interpolation like this:

A

B

C

D

E

F

G

H

I

J

K

L

1

Weight

Temp

-5

0

5

10

15

NoRows

4

2

15,000

A

1

2

3

4

3

B

5

6

7

8

Interpolate

Index

Fraction

4

C

9

10

11

12

Measure

B

1

5

D

13

14

15

16

Weight

13,200

13

0.6

6

14,500

A

17

18

19

20

Temp

4

2

0.8

7

B

21

22

23

24

Value

64.4

8

C

25

26

27

28

9

D

29

30

31

32

10

14,000

A

33

34

35

36

11

B

37

38

39

40

12

C

41

42

43

44

13

D

45

46

47

48

14

13,500

A

49

50

51

52

15

B

53

54

55

56

16

C

57

58

59

60

17

D

61

62

63

64

18

13,000

A

65

66

67

68

19

B

69

70

71

72

20

C

73

74

75

76

21

D

77

78

79

80

22

12,500

A

23

B

24

C

25

D

Sheet6

Cell Formulas
Range	Formula
K4	K4	=MATCH(J4,B2:B5,)-1
K5	K5	=MATCH(J5,Weight,-1)
L5	L5	=(J5-INDEX(Weight,K5))/(INDEX(Weight,K5+NoRows)-INDEX(Weight,K5))
K6	K6	=MATCH(J6,Temp,1)
L6	L6	=(J6-INDEX(Temp,K6))/(INDEX(Temp,K6+1)-INDEX(Temp,K6))
J7	J7	=(INDEX(MyTable,K4+K5,K6)(1-L5)+INDEX(MyTable,K4+K5+NoRows,K6)L5)(1-L6)+(INDEX(MyTable,K4+K5,K6+1)(1-L5)+INDEX(MyTable,K4+K5+NoRows,K6+1)L5)L6

Named Ranges
Name	Refers To	Cells
MyTable	=Sheet6!$C$2:$G$25	J7
NoRows	=Sheet6!$J$1	L5, J7
Temp	=Sheet6!$C$1:$G$1	K6:L6
Weight	=Sheet6!$A$2:$A$22	K5:L5

You could build all this into one formula, but it would be a doozy! (Even if you have the latest version of Excel to use the LET function).

AJIESPEDAS · 2024-05-27T06:00:43-0400

StephenCrump said:
You can do a 2-way linear interpolation like this:

A B C D E F G H I J K L
1 Weight Temp -5 0 5 10 15 NoRows 4
2 15,000 A 1 2 3 4
3 B 5 6 7 8 Interpolate Index Fraction
4 C 9 10 11 12 Measure B 1
5 D 13 14 15 16 Weight 13,200 13 0.6
6 14,500 A 17 18 19 20 Temp 4 2 0.8
7 B 21 22 23 24 Value 64.4
8 C 25 26 27 28
9 D 29 30 31 32
10 14,000 A 33 34 35 36
11 B 37 38 39 40
12 C 41 42 43 44
13 D 45 46 47 48
14 13,500 A 49 50 51 52
15 B 53 54 55 56
16 C 57 58 59 60
17 D 61 62 63 64
18 13,000 A 65 66 67 68
19 B 69 70 71 72
20 C 73 74 75 76
21 D 77 78 79 80
22 12,500 A
23 B
24 C
25 D
Sheet6
Cell Formulas
Range Formula
K4 K4 =MATCH(J4,B2:B5,)-1
K5 K5 =MATCH(J5,Weight,-1)
L5 L5 =(J5-INDEX(Weight,K5))/(INDEX(Weight,K5+NoRows)-INDEX(Weight,K5))
K6 K6 =MATCH(J6,Temp,1)
L6 L6 =(J6-INDEX(Temp,K6))/(INDEX(Temp,K6+1)-INDEX(Temp,K6))
J7 J7 =(INDEX(MyTable,K4+K5,K6)*(1-L5)+INDEX(MyTable,K4+K5+NoRows,K6)*L5)*(1-L6)+(INDEX(MyTable,K4+K5,K6+1)*(1-L5)+INDEX(MyTable,K4+K5+NoRows,K6+1)*L5)*L6
Named Ranges
Name Refers To Cells
MyTable =Sheet6!$C$2:$G$25 J7
NoRows =Sheet6!$J$1 L5, J7
Temp =Sheet6!$C$1:$G$1 K6:L6
Weight =Sheet6!$A$2:$A$22 K5:L5

You could build all this into one formula, but it would be a doozy! (Even if you have the latest version of Excel to use the LET function).

is there any way i can copy this and have a go at my excel? ill try to manipulate it into my excel..
i have done a simple interpolation, but yours is far complicated..

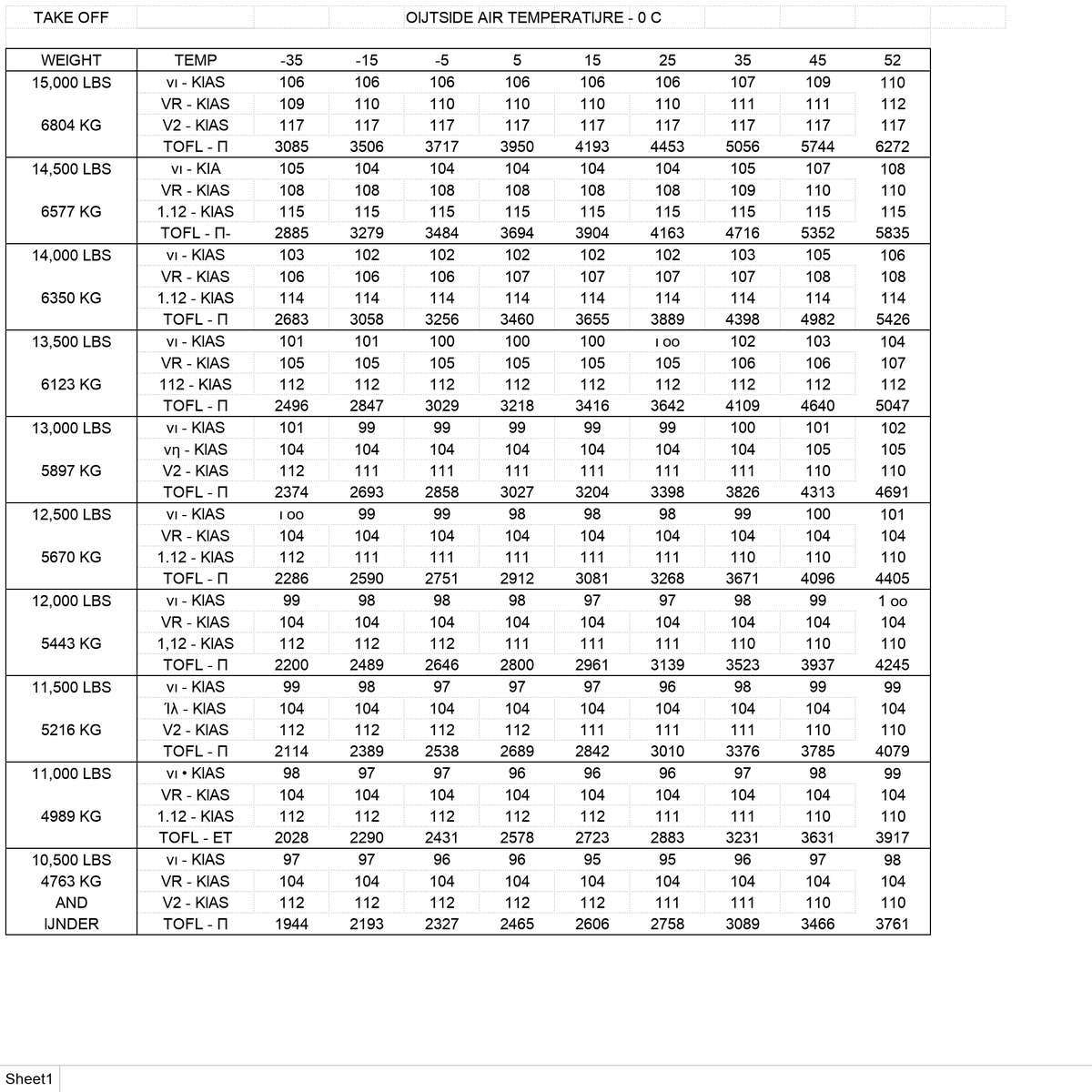

btw this is my excel which i want to interpolate

toff data test.xlsx

Shared with Dropbox

www.dropbox.com

if you can open it.

StephenCrump · 2024-05-27T06:15:40-0400

AJIESPEDAS said:
is there any way i can copy this and have a go at my excel?

Click here, and you can paste the layout and formulae to cell A1 in a blank workbook:

You'll need to create the range names MyTable, NoRows, Temp and Weight
